8Kb serial EEPROM with MICROWIRE interface, organized as 1K x 8. Features a maximum access time of 100ns and operates at frequencies up to 3MHz. Housed in a compact SOT-23 package, this surface-mount component supports a supply voltage range of 1.8V to 5.5V. RoHS compliant and designed for operation between -40°C and 85°C.
Frequency3MHz
PackageSOT-23
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93AA76AT-I/OT technical specifications.
General
| Access Time-Max | 100ns |
| Package/Case | SOT-23 |
| Density | 8Kb |
| Frequency | 3MHz |
| Height | 1.1mm |
| Interface | MICROWIRE, Serial |
| Lead Free | Lead Free |
| Length | 2.95mm |
| Max Frequency | 3MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Organization | 1KX8 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 5.5V |
| Termination | SMD/SMT |
| Width | 1.63mm |
| Write Protection | NO |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93AA76AT-I/OT Datasheet
Download the complete datasheet for Microchip 93AA76AT-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

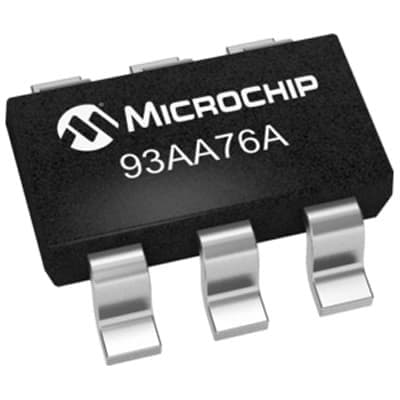

Product Images
