16Kb serial EEPROM memory, 16K x 16 configuration, featuring MICROWIRE and 3-wire serial interface. Operates with a maximum access time of 100ns and a maximum frequency of 1MHz. Supplied in a compact MSOP package with tin-matte contact plating, suitable for surface mounting. Supports a wide supply voltage range from 1.8V to 5.5V and operates between -40°C and 85°C. This RoHS compliant component offers write protection and a typical supply current of 3mA.
Frequency3MHz
PackageMSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93AA86C-I/MS technical specifications.
General
Access Time-Max
100ns
Package/Case
MSOP
Contact Plating
Tin, Matte
Density
16Kb
Frequency
3MHz
Height
0.85mm
Interface
MICROWIRE, Serial, 3-WIRE
Lead Free
Lead Free
Length
3mm
Max Frequency
1MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Surface Mount
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Width
3mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93AA86C-I/MS Datasheet
Download the complete datasheet for Microchip 93AA86C-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

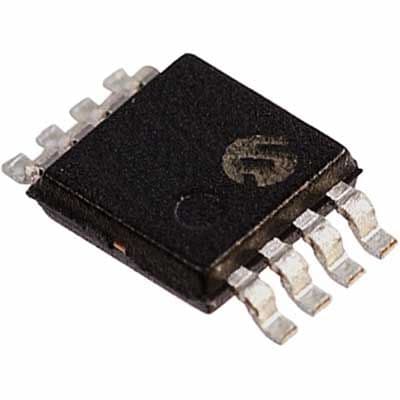

Product Images
