1Kb MICROWIRE serial EEPROM for surface mount applications. Features a 128x8 organization and a maximum access time of 250ns. Operates with a 2MHz maximum frequency and a supply voltage range of 2.5V to 5.5V. Housed in a compact MSOP package with tin-matte contact plating. Includes write protection and is RoHS compliant.
Frequency2MHz
PackageMSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC46A-I/MS technical specifications.
General
Access Time-Max
250ns
Package/Case
MSOP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
2MHz
Height
0.85mm
Interface
MICROWIRE, Serial, 3-WIRE
Lead Free
Lead Free
Length
3mm
Max Frequency
2MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
128X8
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Width
3mm
Write Cycle Time-Max (tWC)
6ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC46A-I/MS Datasheet
Download the complete datasheet for Microchip 93LC46A-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

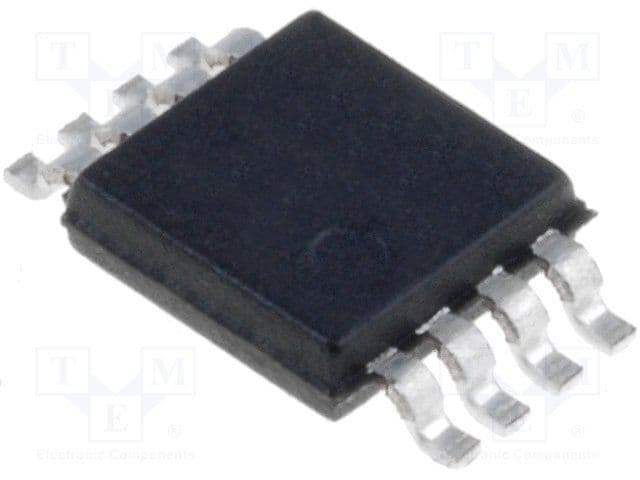

Product Images
