1Kb MICROWIRE serial EEPROM with 128x8 organization. Features 2µs access time and 2MHz maximum frequency. Operates from 2.5V to 6V supply voltage with 2mA supply current. Packaged in a through-hole PDIP-8, this RoHS compliant memory offers write protection and a 6ms maximum write cycle time.
Frequency2MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 93LC46A/P technical specifications.
General
| Access Time | 2us |
| Package/Case | PDIP |
| Density | 1Kb |
| Frequency | 2MHz |
| Interface | MICROWIRE, Serial |
| Lead Free | Lead Free |
| Max Frequency | 2MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 6V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Organization | 128X8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Voltage-Nom | 5.5V |
| Write Cycle Time-Max (tWC) | 6ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93LC46A/P Datasheet
Download the complete datasheet for Microchip 93LC46A/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

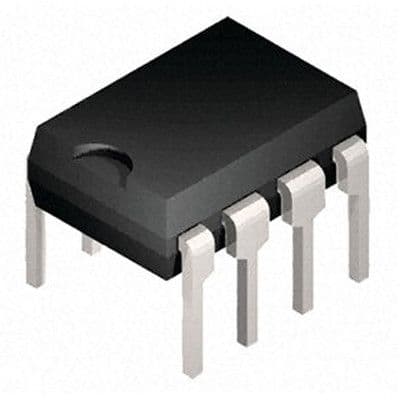

Product Images
