Technical Specifications
Microchip 93LC46BT-E/MNY technical specifications.
General
Access Time-Max
250ns
Contact Plating
Gold
Density
1Kb
Frequency
2MHz
Interface
Serial
Max Frequency
2MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
64X16
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC46BT-E/MNY Datasheet
Download the complete datasheet for Microchip 93LC46BT-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

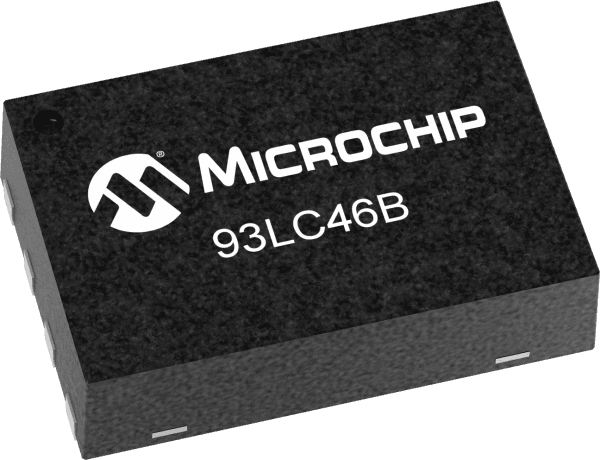

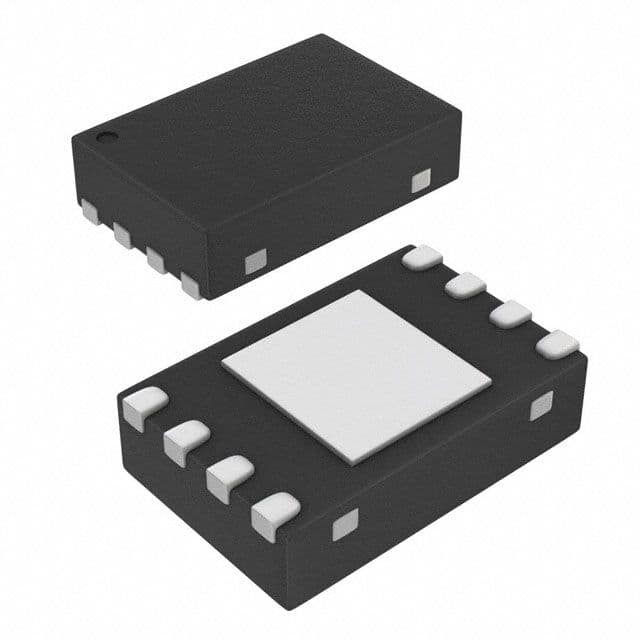

Product Images
