2Kb Serial EEPROM memory, organized as 128 x 16, featuring a MICROWIRE interface with a maximum frequency of 2MHz. This non-volatile memory component operates with supply voltages from 2.5V to 5.5V and offers a maximum access time of 250ns. Packaged in a 6-pin SOT-23 surface-mount configuration, it supports write protection and has a maximum operating temperature of 85°C.
Frequency2MHz
PackageSOT-23
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC56BT-I/OT technical specifications.
General
Access Time-Max
250ns
Package/Case
SOT-23
Density
2Kb
Frequency
2MHz
Height
1.3mm
Interface
MICROWIRE, Serial
Lead Free
Lead Free
Length
3.1mm
Max Frequency
2MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM, , Non-Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
128X16
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Supply Current
2mA
Supply Voltage-Nom
5.5V
Width
1.8mm
Write Cycle Time-Max (tWC)
6ms
Write Protection
YES
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip 93LC56BT-I/OT Datasheet
Download the complete datasheet for Microchip 93LC56BT-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

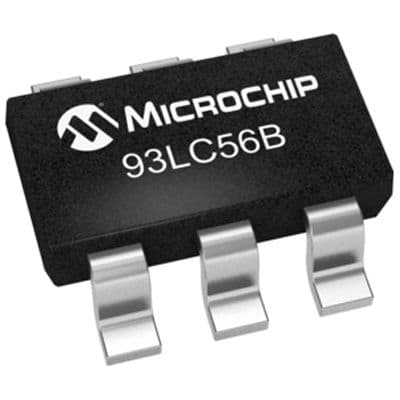

Product Images
