Serial EEPROM memory with 4Kb density, organized as 256 x 16 bits. Features a MICROWIRE, Serial, 3-WIRE interface and operates with a maximum frequency of 2MHz. This through-hole component supports supply voltages from 2.5V to 5.5V and has a maximum access time of 250ns. The PDIP package is RoHS compliant and suitable for operation between -40°C and 85°C.
Frequency2MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip 93LC66B-I/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip 93LC66B-I/P technical specifications.
General
| Access Time-Max | 250ns |
| Package/Case | PDIP |
| Density | 4Kb |
| Frequency | 2MHz |
| Height | 3.3mm |
| Interface | MICROWIRE, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Frequency | 2MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 4Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Organization | 256X16 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Voltage-Nom | 5.5V |
| Width | 6.35mm |
| Write Cycle Time-Max (tWC) | 6ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93LC66B-I/P Datasheet
Download the complete datasheet for Microchip 93LC66B-I/P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

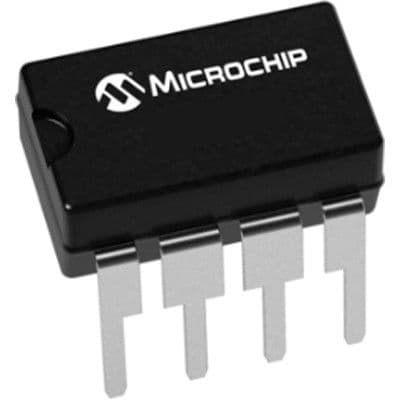

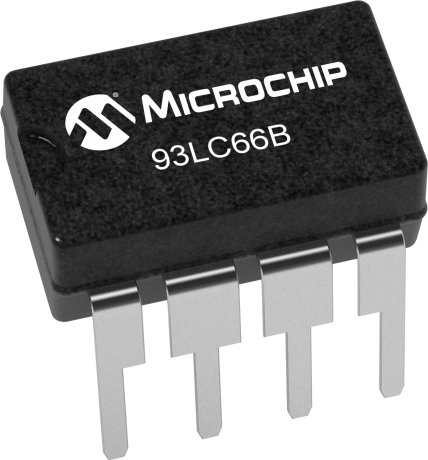

Product Images
