Microchip
93LC66BT-I/MNY
256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8
Frequency2MHz
PackageSOT-23
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC66BT-I/MNY technical specifications.
General
Access Time-Max
250ns
Package/Case
SOT-23
Contact Plating
Gold
Density
4Kb
Frequency
2MHz
Interface
Serial
Max Frequency
2MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
256X16
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC66BT-I/MNY Datasheet
Download the complete datasheet for Microchip 93LC66BT-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

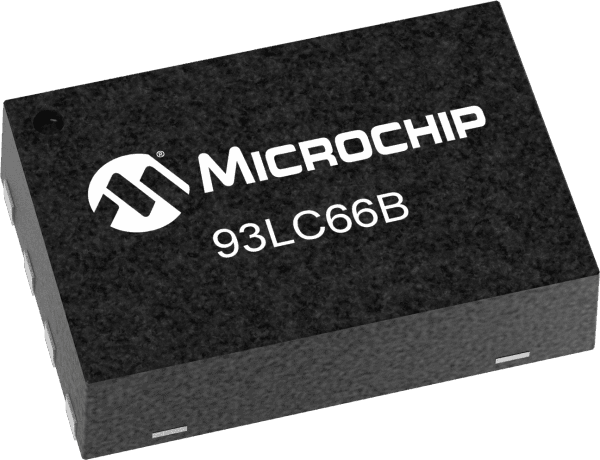

Product Images
