16Kb serial EEPROM memory, organized as 256 x 8, featuring a MICROWIRE/3-wire interface and a maximum frequency of 3MHz. Offers a fast access time of 100ns, operates from 2.5V to 5.5V supply voltage, and is available in a lead-free, RoHS compliant SOIC package. This non-volatile memory component supports surface mounting and includes write protection.
Frequency3MHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93LC86C-I/SN technical specifications.
General
Access Time
200ns
Access Time-Max
100ns
Package/Case
SOIC
Density
16Kb
Frequency
3MHz
Height
1.25mm
Interface
MICROWIRE, Serial, 3-WIRE
Lead Free
Lead Free
Length
4.9mm
Max Frequency
3MHz
Max Operating Temperature
85°C
Memory Size
16Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
256 x 8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93LC86C-I/SN Datasheet
Download the complete datasheet for Microchip 93LC86C-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

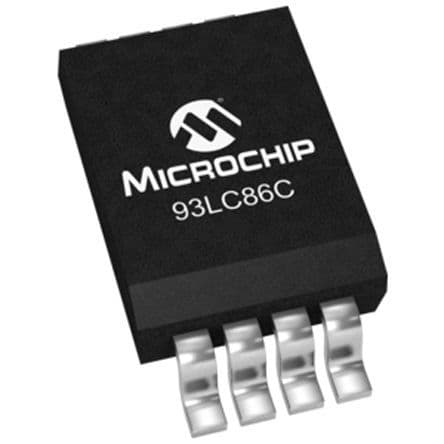

Product Images
