Automotive-grade 12-bit resistive touch screen controller IC, featuring 4-wire, 5-wire, and 8-wire interface support, alongside Serial, USB, UART, and RS-232 connectivity. Operates from a 3.3V to 5V supply, with a maximum operating temperature of 85°C and a minimum of -40°C. This 20-pin SSOP package component offers a 12-bit resolution and a typical operating supply current of 25mA. RoHS compliant and supplied in a rail/tube package.
PackageSSOP
Current25mA
Quick Jump:
Technical Specifications
Microchip AR1100-I/SS technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Tin, Matte |
| Height | 0.073inch |
| Interface | Serial, USB, UART, 4-WIRE, 5-WIRE, 8-WIRE, RS-232, SPI |
| Lead Free | Lead Free |
| Length | 0.295inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3.3V |
| Number of Bits | 12 |
| Operating Supply Current | 25mA |
| Package Quantity | 67 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Series | mTouch™ |
| Supply Current | 25mA |
| Width | 0.22inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AR1100-I/SS Datasheet
Download the complete datasheet for Microchip AR1100-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

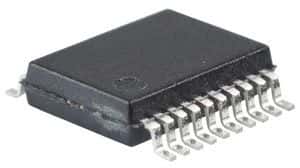

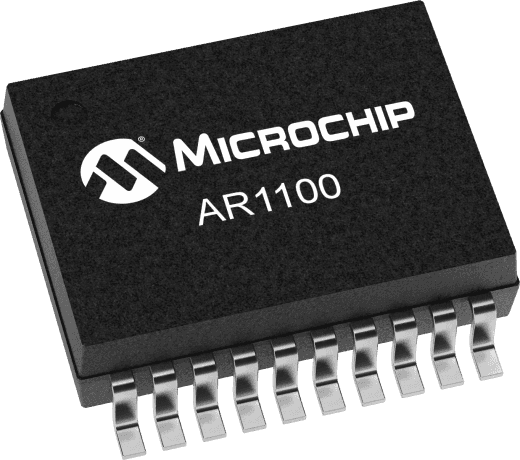

Product Images
