Frequency1MHz
PackageTSSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT24C02C-XHM-T technical specifications.
General
Access Time
550ns
Access Time-Max
550ns
Package/Case
TSSOP
Density
2048b
Frequency
1MHz
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Max Frequency
1MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM, , Non-Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Organization
256X8
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT24C02C-XHM-T Datasheet
Download the complete datasheet for Microchip AT24C02C-XHM-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

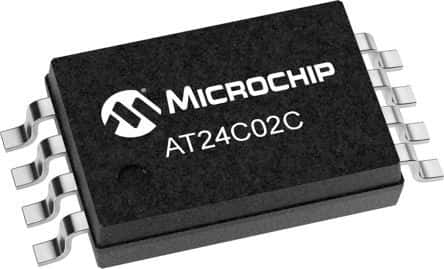

Product Images
