Frequency400kHz
PackageTSSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications

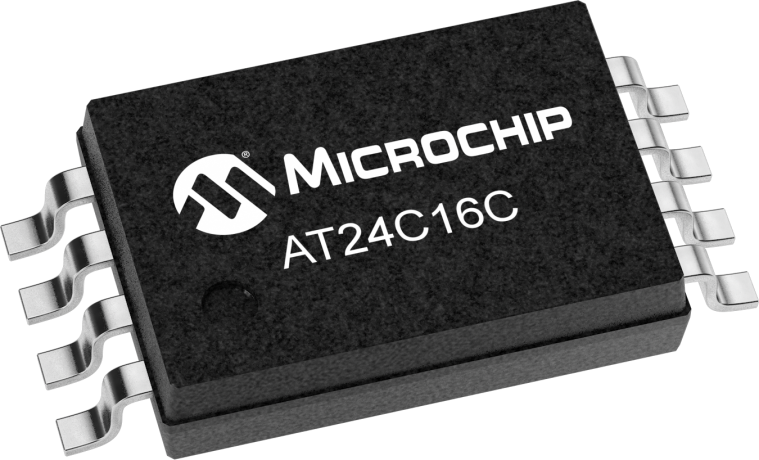

Microchip AT24C16C-XHM-T technical specifications.
General
Access Time-Max
900ns
Package/Case
TSSOP
Density
16384b
Frequency
400kHz
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
1.7V
Mount
Surface Mount
Organization
2KX8
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT24C16C-XHM-T Datasheet
Download the complete datasheet for Microchip AT24C16C-XHM-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
