Technical Specifications
Microchip AT24C512C-SHD-B technical specifications.
General
| Access Time-Max | 550ns |
| Package/Case | SOIC |
| Frequency | 1MHz |
| Height | 1.5mm |
| Interface | Serial, I2C |
| Length | 5.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 512Kb |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Words | 65536 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT24C512C-SHD-B Datasheet
Download the complete datasheet for Microchip AT24C512C-SHD-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

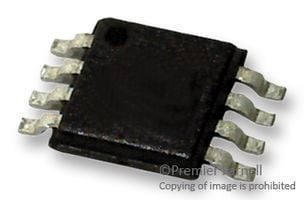

Product Images
