512Kb Serial EEPROM memory, 64K x 8 organization, offering 524288 bits of non-volatile storage. Features a 2-wire serial interface with a maximum frequency of 400kHz and a 900ns access time. Operates across a wide temperature range from -40°C to 85°C with a supply voltage between 1.7V and 3.6V. Packaged in an 8-pin SOIC surface mount configuration, this component includes write protection and is RoHS compliant.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT24C512C-SSHM-B technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | SOIC |
| Density | 524288b |
| Frequency | 400kHz |
| Height | 1.5mm |
| Interface | Serial, 2-Wire |
| Length | 5.05mm |
| Max Operating Temperature | 85°C |
| Memory Size | 512Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Words | 65536 |
| Organization | 64KX8 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Width | 3.99mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT24C512C-SSHM-B Datasheet
Download the complete datasheet for Microchip AT24C512C-SSHM-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

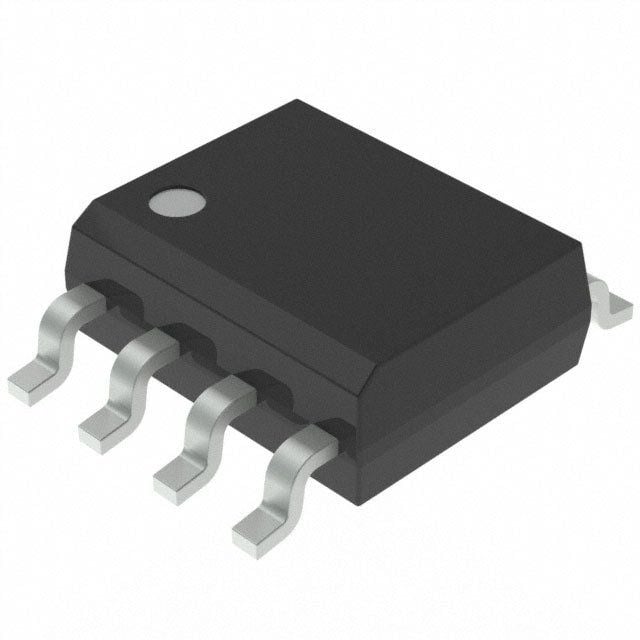

Product Images
