Frequency20MHz
PackageTSSOP
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications

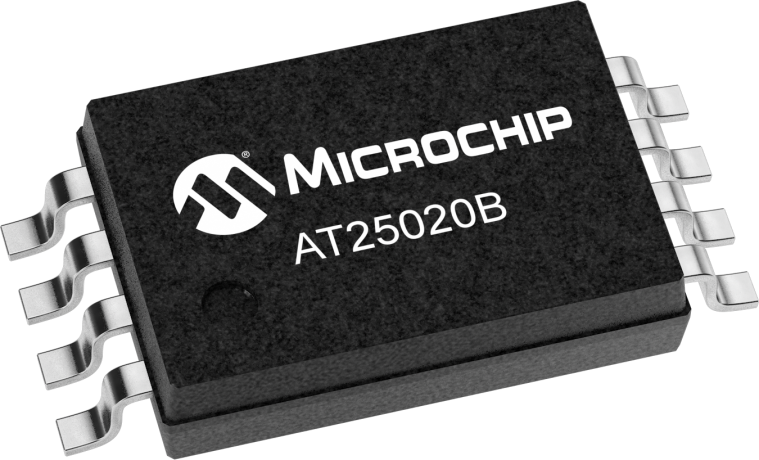

Microchip AT25020B-XHL-T technical specifications.
General
Access Time-Max
80ns
Package/Case
TSSOP
Density
2048b
Frequency
20MHz
Interface
SPI, Serial, 3-WIRE
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM, , Non-Volatile
Min Supply Voltage
1.8V
Mount
Surface Mount
Organization
256X8
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
10mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT25020B-XHL-T Datasheet
Download the complete datasheet for Microchip AT25020B-XHL-T to view detailed technical specifications.
