Technical Specifications
Microchip AT25040B-SSHL-T technical specifications.
General
Access Time-Max
80ns
Package/Case
SOIC
Density
4096b
Frequency
20MHz
Interface
SPI, Serial, 3-WIRE
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM, , Non-Volatile
Min Supply Voltage
1.8V
Mount
Surface Mount
Organization
512X8
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
10mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT25040B-SSHL-T Datasheet
Download the complete datasheet for Microchip AT25040B-SSHL-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

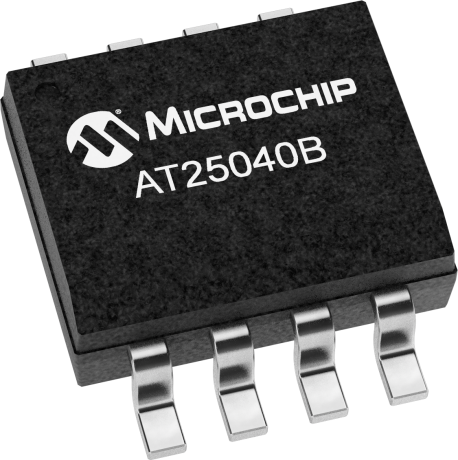

Product Images
