512Kb Serial EEPROM memory, organized as 64K x 8, featuring a 3-wire SPI interface. Operates with supply voltages from 1.8V to 3.6V, with a nominal supply voltage of 5.5V and a maximum supply current of 7mA. Offers a maximum access time of 80ns and a maximum frequency of 5MHz. Packaged in an 8-pin SOIC surface mount configuration, this lead-free and RoHS compliant component operates across a temperature range of -40°C to 85°C. Includes write protection functionality.
Frequency20MHz
PackageSOIC
Current7mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT25512N-SH-B technical specifications.
General
| Access Time-Max | 80ns |
| Package/Case | SOIC |
| Density | 524288b |
| Frequency | 20MHz |
| Height | 1.5mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 5MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 512Kb |
| Memory Type | EEPROM, , Non-Volatile |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Organization | 64KX8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 7mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3.99mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT25512N-SH-B Datasheet
Download the complete datasheet for Microchip AT25512N-SH-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

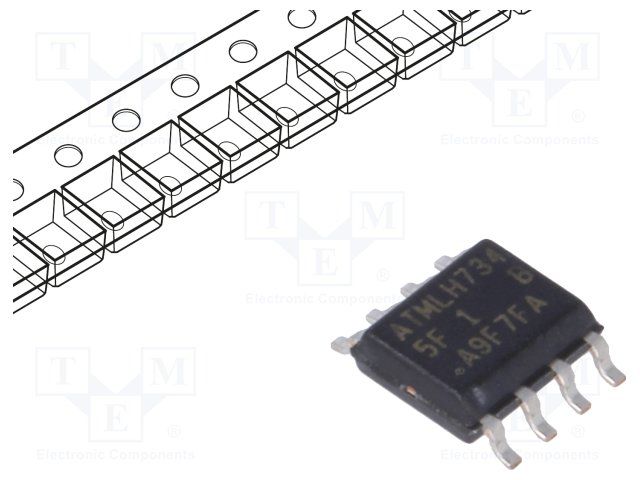

Product Images
