Technical Specifications
Microchip AT27C020-90PU technical specifications.
General
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Package/Case | PDIP |
| Frequency | 90GHz |
| Height | 4.83mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 42.29mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2Mb |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Programming Voltage | 13V |
| RoHS Compliant | Yes |
| Width | 13.97mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT27C020-90PU Datasheet
Download the complete datasheet for Microchip AT27C020-90PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

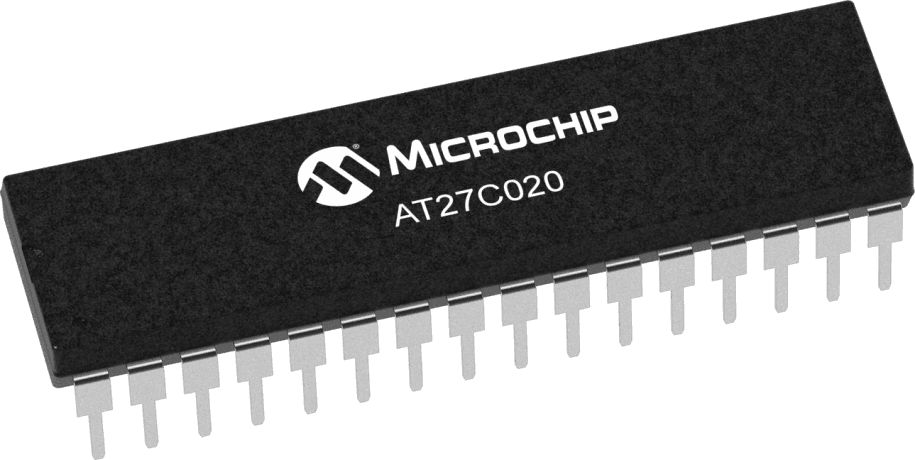

Product Images
