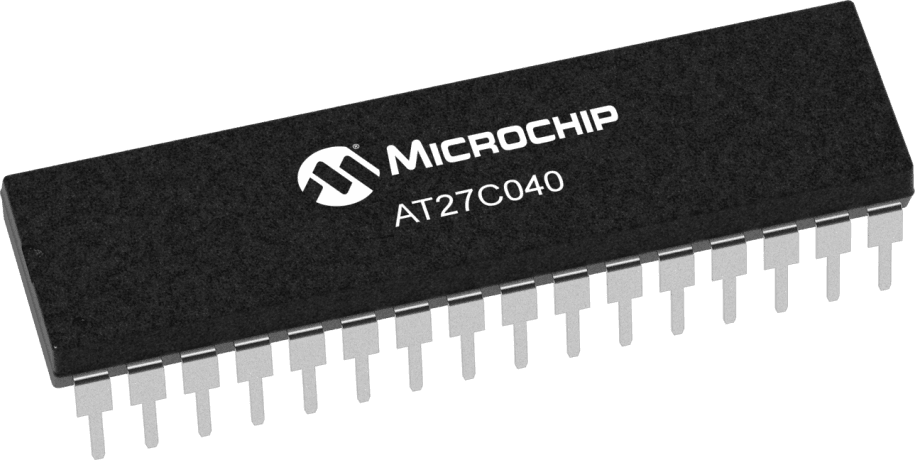

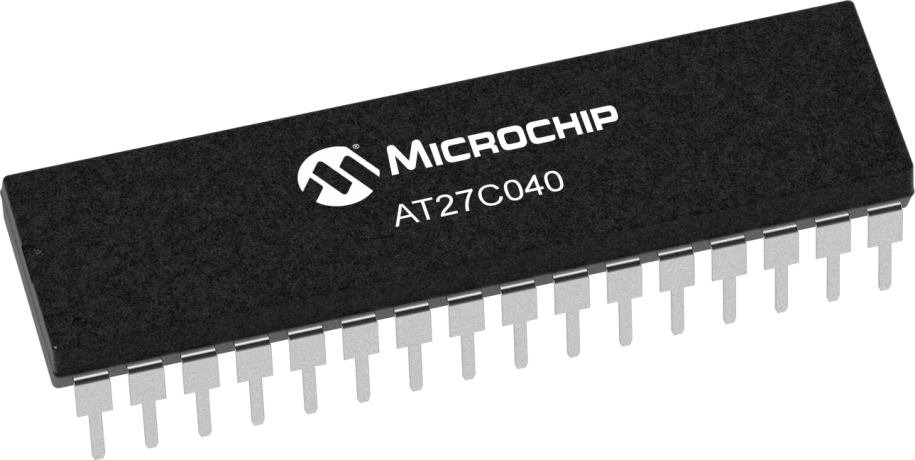

4Mb OTP EPROM memory IC featuring a 512K x 8 organization and 70ns access time. This through-hole component utilizes a parallel interface and operates from a 4.5V to 5.5V supply voltage. Packaged in a 32-pin PDIP with tin, matte plating, it supports a programming voltage of 13V and is RoHS compliant. Operating temperature range is -40°C to 85°C.
Frequency70GHz
PackagePDIP
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip AT27C040-70PU technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 4Mb |
| Frequency | 70GHz |
| Height | 4.83mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 42.29mm |
| Max Operating Temperature | 85°C |
| Memory Size | 4Mb |
| Memory Type | OTP, EPROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 100uA |
| Operating Supply Voltage | 5V |
| Organization | 512KX8 |
| Package Quantity | 12 |
| Packaging | Rail/Tube |
| Programming Voltage | 13V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 30mA |
| Weight | 0.078125oz |
| Width | 13.97mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT27C040-70PU Datasheet
Download the complete datasheet for Microchip AT27C040-70PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
