8Mb OTP EPROM memory IC, organized as 1M x 8, featuring a 90ns access time. This surface mount component utilizes a parallel interface and operates from a 4.5V to 5.5V supply voltage, with a typical 5V operating voltage. Packaged in a 32-pin PLCC with tin-matte plating, it supports a programming voltage of 13V and operates within a temperature range of -40°C to 85°C. RoHS compliant.
Frequency90GHz
PackagePLCC
Current40mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT27C080-90JU technical specifications.
General
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Density | 8Mb |
| Frequency | 90GHz |
| Height | 2.79mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 14.1mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Mb |
| Memory Type | OTP, EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 1MX8 |
| Package Quantity | 32 |
| Programming Voltage | 13V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 40mA |
| Termination | SMD/SMT |
| Width | 11.51mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT27C080-90JU Datasheet
Download the complete datasheet for Microchip AT27C080-90JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

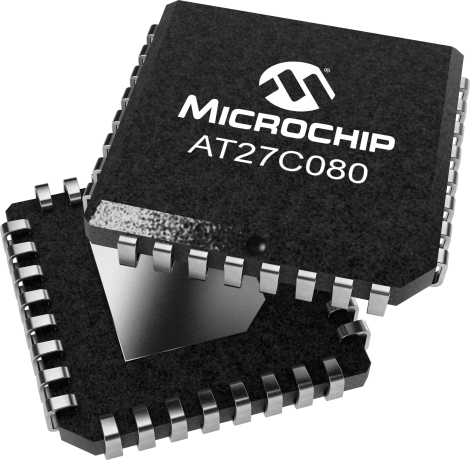

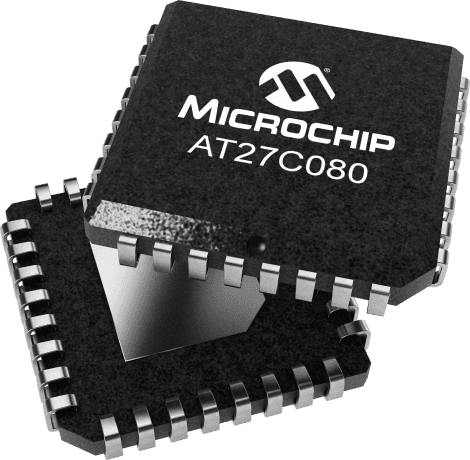

Product Images
