The AT27C1024-70JU-T is a 64Kx16 parallel ROM from Microchip with an access time of 70ns. It operates within a temperature range of -40°C to 85°C and is powered by a 5V supply voltage with a maximum of 5.5V. The device is packaged in a PLCC-44 surface mount package and is available in tape and reel packaging.
PackagePLCC
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT27C1024-70JU-T technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Package/Case | PLCC |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 30mA |
| Operating Supply Voltage | 5V |
| Organization | 64KX16 |
| Packaging | Tape and Reel |
| Supply Current | 30mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT27C1024-70JU-T Datasheet
Download the complete datasheet for Microchip AT27C1024-70JU-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

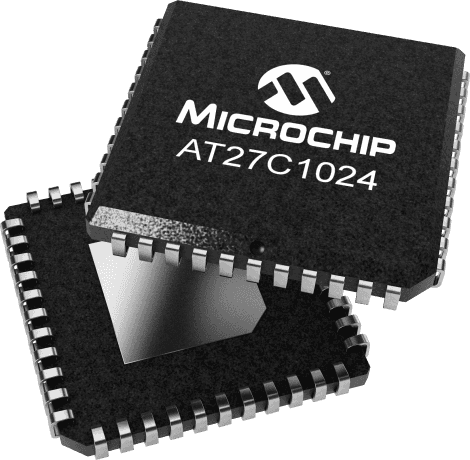

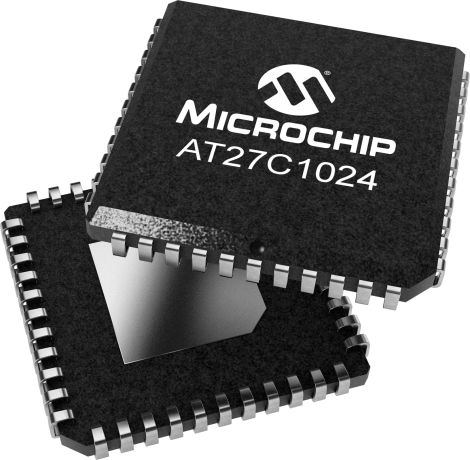

Product Images
