256Kb OTP EPROM memory IC, organized as 32K x 8 words, features a fast 45ns access time. This integrated circuit operates with a 5V supply voltage, supporting a range of 4.5V to 5.5V. Designed for through-hole mounting, it utilizes a parallel interface and comes in a 28-pin PDIP package. Operating across a temperature range of -40°C to 85°C, this RoHS compliant component is suitable for various electronic applications.
Frequency45GHz
PackagePDIP
Voltage7V
Current20mA
Quick Jump:
Technical Specifications
Microchip AT27C256R-45PU technical specifications.
General
| Access Time | 45ns |
| Access Time-Max | 45ns |
| Package/Case | PDIP |
| Density | 262144b |
| Frequency | 45GHz |
| Height | 4.44mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 37.33mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256Kb |
| Memory Type | OTP, EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Words | 32000 |
| Operating Supply Voltage | 5V |
| Organization | 32KX8 |
| Programming Voltage | 5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 20mA |
| Voltage | 7V |
| Width | 13.97mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT27C256R-45PU Datasheet
Download the complete datasheet for Microchip AT27C256R-45PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

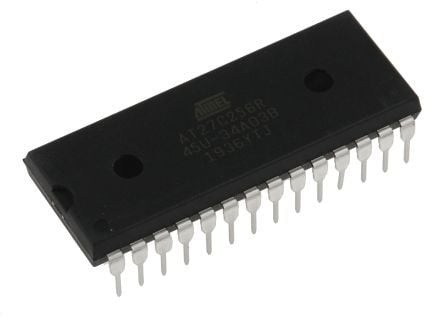

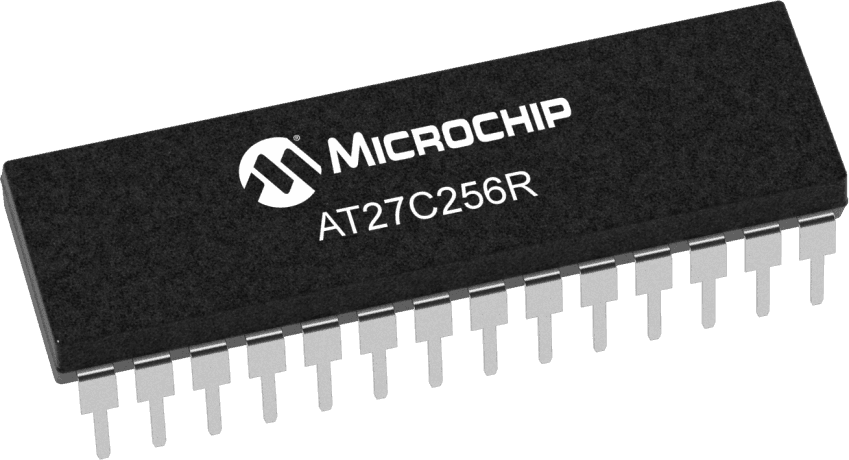

Product Images
