64Kb Parallel EEPROM memory, organized as 8K x 8, featuring a 150ns access time. This integrated circuit operates at 5V with a supply voltage range of 4.5V to 5.5V and supports a 5MHz frequency. Designed for surface mounting, it comes in a 32-pin PLCC package with tin, matte contact plating. The component offers write protection and is RoHS compliant.
Frequency5MHz
PackagePLCC
Voltage5V
Current40mA
Quick Jump:
Technical Specifications
Microchip AT28C64B-15JU technical specifications.
General
Access Time
150ns
Access Time-Max
150ns
Package/Case
PLCC
Contact Plating
Tin, Matte
Density
64Kb
Frequency
5MHz
Height
2.79mm
Interface
SPI, Parallel
Lead Free
Lead Free
Length
14.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM,
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
32
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
40mA
Termination
SMD/SMT
Voltage
5V
Width
11.51mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT28C64B-15JU Datasheet
Download the complete datasheet for Microchip AT28C64B-15JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

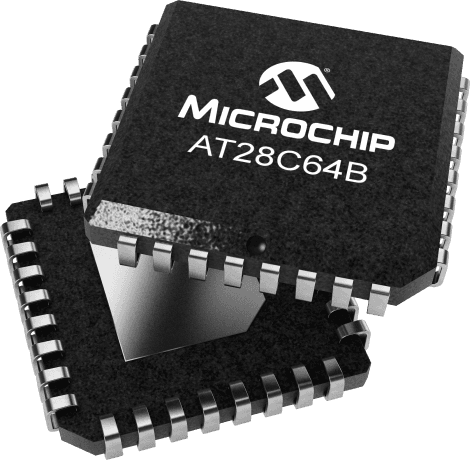

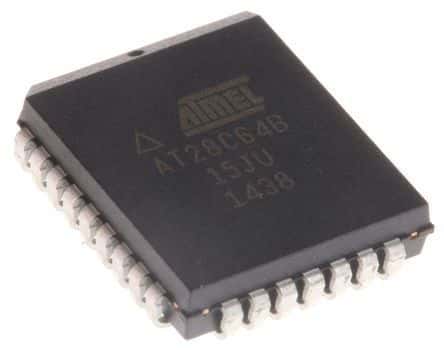

Product Images
