64Kb Parallel EEPROM memory IC with a 150ns access time. Features a 5V programming voltage and operates across a 4.5V to 5.5V supply range. This integrated circuit is housed in a DIP package for through-hole mounting and supports a 5MHz frequency. It offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
Frequency5MHz
PackageDIP
Voltage6V
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip AT28C64B-15PU technical specifications.
General
Access Time
150ns
Access Time-Max
150ns
Package/Case
DIP
Frequency
5MHz
Height
4.2mm
Interface
Parallel
Lead Free
Lead Free
Length
37.85mm
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Packaging
Rail/Tube
Programming Voltage
5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Voltage
6V
Width
15.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT28C64B-15PU Datasheet
Download the complete datasheet for Microchip AT28C64B-15PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

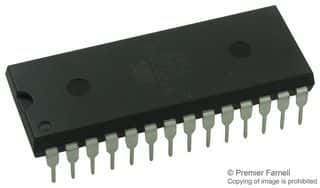

Product Images
