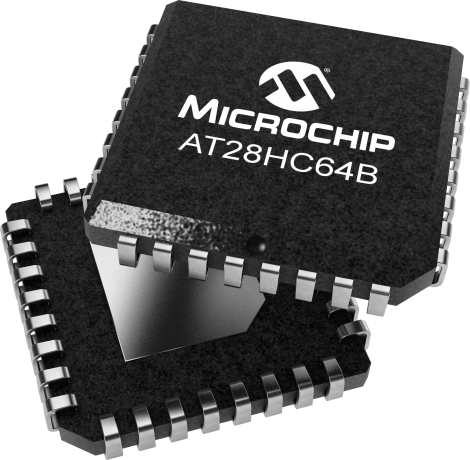

64Kbit EEPROM memory IC, organized as 8K x 8, featuring a 90ns access time. This non-volatile memory component supports both SPI and Parallel interfaces, with a maximum operating supply voltage of 5.5V and a standard operating voltage of 5V. Encased in a 32-pin PLCC package with tin, matte contact plating, it is designed for surface mounting and is RoHS compliant. The device operates within a temperature range of -40°C to 85°C and includes write protection functionality.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT28HC64B-90JU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Density | 64Kb |
| Frequency | 90GHz |
| Interface | SPI, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 8KX8 |
| Package Quantity | 32 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 40mA |
| Write Protection | YES |
| RoHS | Compliant |
