Technical Specifications
Microchip AT28LV010-20JU technical specifications.
General
| Access Time | 200ns |
| Access Time-Max | 200ns |
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Density | 1Mb |
| Frequency | 5MHz |
| Interface | SPI, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 128Kb |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 128KX8 |
| Package Quantity | 32 |
| Programming Voltage | 3.465V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT28LV010-20JU Datasheet
Download the complete datasheet for Microchip AT28LV010-20JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

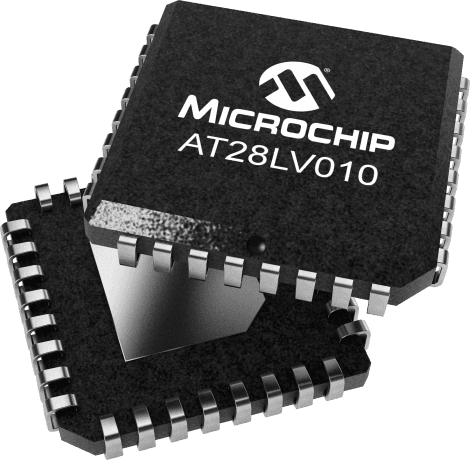

Product Images
