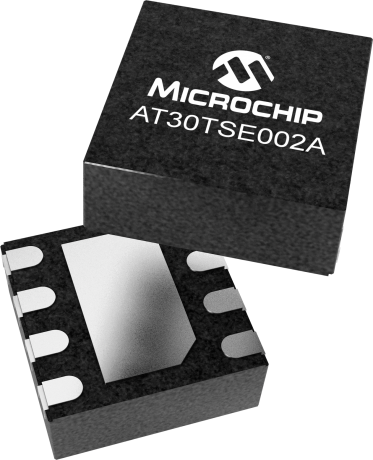

The AT30TSE002A-MAH-T is a 10-bit I2C temperature sensor from Microchip. It is packaged in a WDFN-8 package and is designed for surface mount applications. The sensor operates over a temperature range of -20°C to 125°C and is compliant with RoHS regulations. It is available in a cut tape package with 1 unit per package.
PackageDFN
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip AT30TSE002A-MAH-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip AT30TSE002A-MAH-T technical specifications.
General
| Package/Case | DFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Output Type | I2C |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Resolution | 10b |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT30TSE002A-MAH-T Datasheet
Download the complete datasheet for Microchip AT30TSE002A-MAH-T to view detailed technical specifications.
