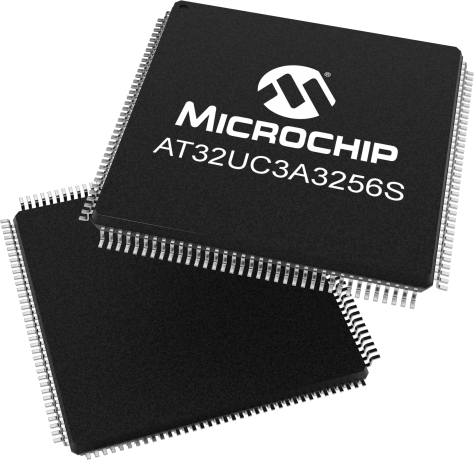

32-bit AVR microcontroller featuring 256KB FLASH and 96KB RAM. Operates at up to 66MHz with a 3V to 3.6V supply voltage. Offers 110 I/Os and supports SPI, I2S, USART, I2C, USB, and UART interfaces. Packaged in a 144-pin LQFP with tin, matte contact plating for surface mounting. Includes peripherals like Brown-out Detect, POR, and a Watchdog Timer.
Frequency66MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3A3256S-ALUT technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
32b
Frequency
66MHz
Interface
SPI, I2S, USART, 2-Wire, I2C, USB, IrDA, UART, EBI/EMI, SCI
Lead Free
Lead Free
Max Frequency
66MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
110
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
300
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, WDT, DMA
RAM Size
96KB
RoHS Compliant
Yes
Series
AVR®32 UC3 A3
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip AT32UC3A3256S-ALUT Datasheet
Download the complete datasheet for Microchip AT32UC3A3256S-ALUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
