32-bit AVR microcontroller featuring 256KB FLASH and 32KB RAM. Operates at up to 60MHz with a 3.3V supply voltage, supporting a range from 1.65V to 3.6V. Offers extensive connectivity with SPI, USART, I2C, USB, IrDA, UART, and I2S interfaces. Includes 3 timers/counters, 44 programmable I/Os, and peripherals like DMA, POR, and WDT. Packaged in a VQFN surface mount configuration, this RoHS compliant component is ideal for demanding applications.
Frequency60MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32UC3B0256-Z2UR technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | AVR |
| Data Bus Width | 32b |
| Frequency | 60MHz |
| Interface | SPI, USART, 2-Wire, I2C, USB, IrDA, UART, I2S |
| Max Frequency | 60MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of I/Os | 44 |
| Number of Programmable I/O | 44 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 32KB |
| RoHS Compliant | Yes |
| Series | AVR®32 UC3 B |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT32UC3B0256-Z2UR Datasheet
Download the complete datasheet for Microchip AT32UC3B0256-Z2UR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

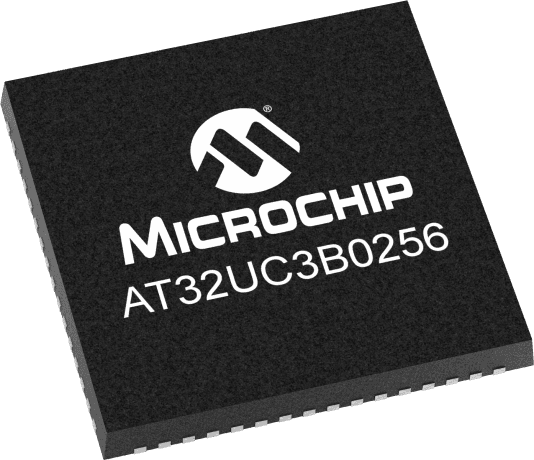

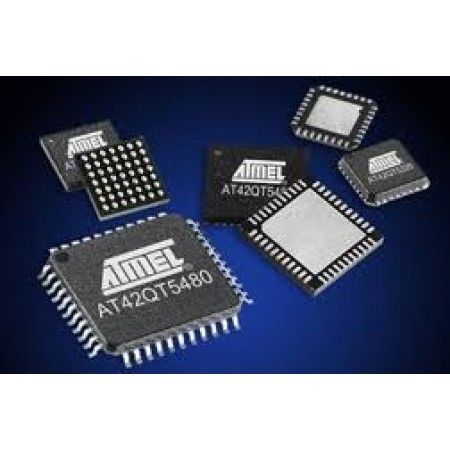

Product Images
