Technical Specifications
Microchip AT42QT2160-MMU technical specifications.
General
| Package/Case | QFN |
| Height | 0.95mm |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Length | 4.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Inputs | 16 |
| Operating Supply Current | 1.127mA |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | QMatrix™, QSlide™ |
| Supply Current | 476uA |
| Termination | SMD/SMT |
| Touchscreen | Capacitive |
| Width | 4.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT42QT2160-MMU Datasheet
Download the complete datasheet for Microchip AT42QT2160-MMU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

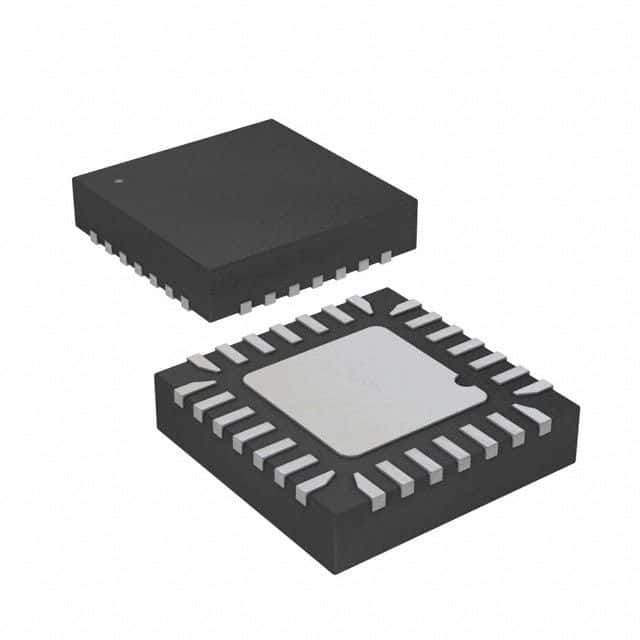

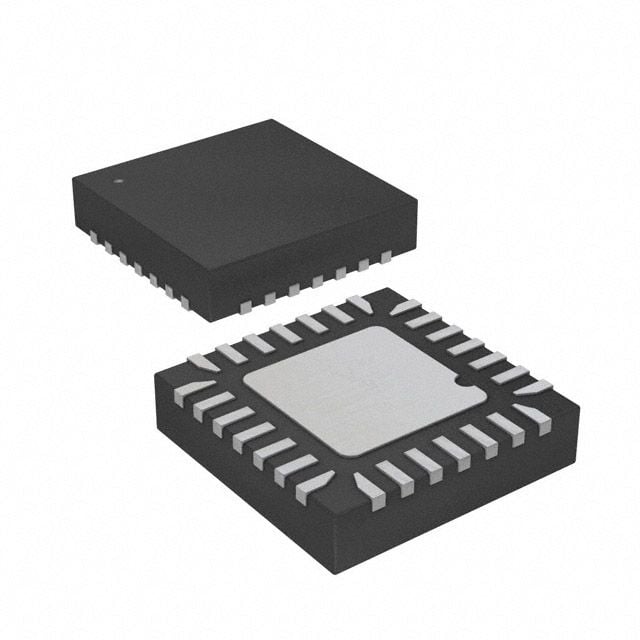

Product Images
