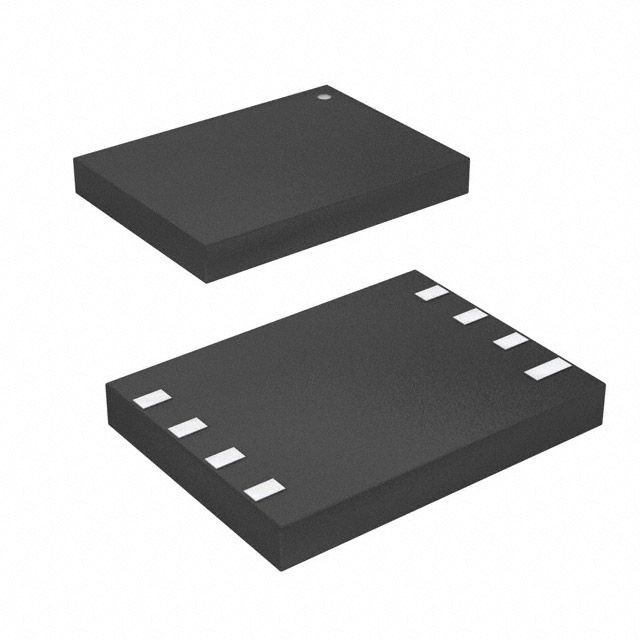

The AT45DB161B-CNI is a 16Mb SPI NOR FLASH memory device with a maximum operating frequency of 20MHz and a maximum supply voltage of 3.6V. It operates over a temperature range of -40°C to 85°C and is available in a surface mount package. The device is not RoHS compliant. It has a data bus width of 8 bits and an access time of 20us.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT45DB161B-CNI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip AT45DB161B-CNI technical specifications.
| Access Time | 20us |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Interface | SPI, Serial |
| Lead Free | Contains Lead |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | NOR, , FLASH, DataFLASH, Non-Volatile |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Package Quantity | 378 |
| Packaging | Tray |
| RoHS Compliant | No |
| RoHS | Not Compliant |
