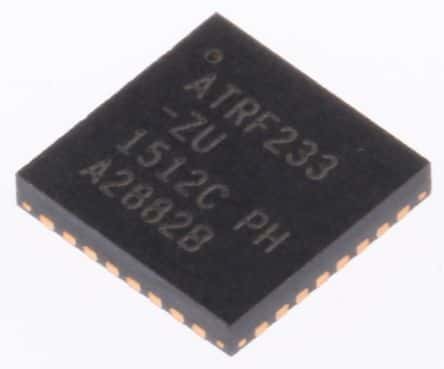

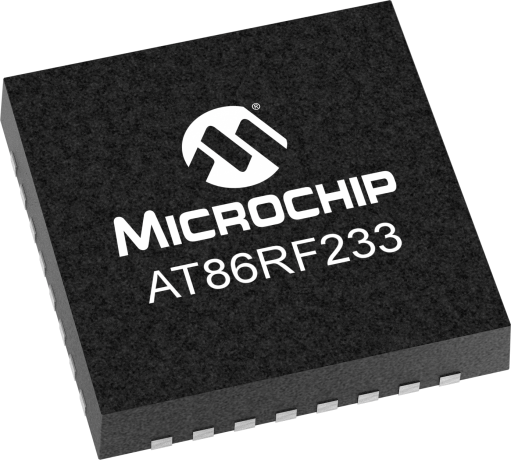

2.4GHz RF Transceiver IC, QPSK modulation, 2Mbps data rate, -101dBm sensitivity. Operates from 1.8V to 3.6V supply, with 11.8mA receive and 13.8mA transmit current. Features SPI interface, 128B memory, and a 5mm x 5mm x 1mm QFN package. RoHS compliant and lead-free, suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT86RF233-ZU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip AT86RF233-ZU technical specifications.
| Package/Case | QFN |
| Current - Receiving | 11.8mA |
| Current - Transmitting | 13.8mA |
| Data Rate | 2Mbps |
| Frequency | 2.4GHz |
| Height | 1mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128B |
| Min Supply Voltage | 1.8V |
| Modulation Technique | QPSK |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Sensitivity | -101dBm |
| Width | 5mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip AT86RF233-ZU to view detailed technical specifications.
