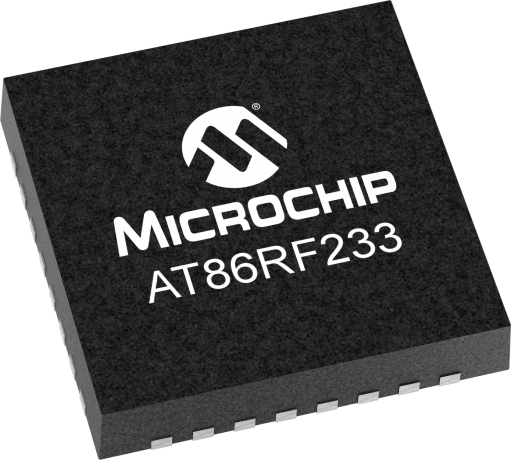

2.4GHz RF Transceiver, 2Mbps data rate, -101dBm sensitivity. Features SPI interface, 128B memory, and low current consumption (11.8mA receive, 13.8mA transmit). Operates from -40°C to 85°C, packaged in QFN, tape and reel. Lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT86RF233-ZUR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip AT86RF233-ZUR technical specifications.
| Package/Case | QFN |
| Current - Receiving | 11.8mA |
| Current - Transmitting | 13.8mA |
| Data Rate | 2Mbps |
| Frequency | 2.4GHz |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 128B |
| Min Operating Temperature | -40°C |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Sensitivity | -101dBm |
| RoHS | Compliant |
