Microchip
AT89C51-24PI
Contains Lead Non-RoHS Compliant Through Hole FLASH Microcontroller 24mus 85C 24MHz 128x 8
Frequency24MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip AT89C51-24PI technical specifications.
General
| Access Time | 24us |
| Package/Case | PDIP |
| Core Architecture | 80C51 |
| Data Bus Width | 8b |
| Interface | UART, USART |
| Lead Free | Contains Lead |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 6V |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 2 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Package Quantity | 9 |
| RAM Size | 128B |
| RoHS Compliant | No |
| Series | 89C |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip AT89C51-24PI Datasheet
Download the complete datasheet for Microchip AT89C51-24PI to view detailed technical specifications.
No datasheet is available for this part.

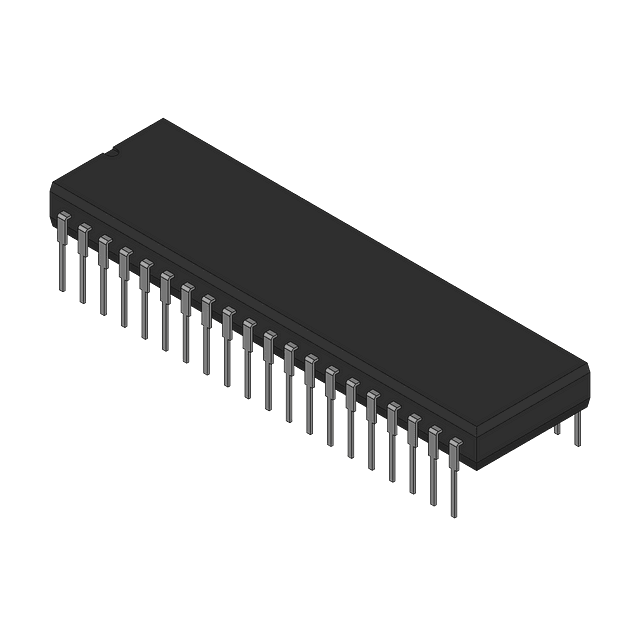

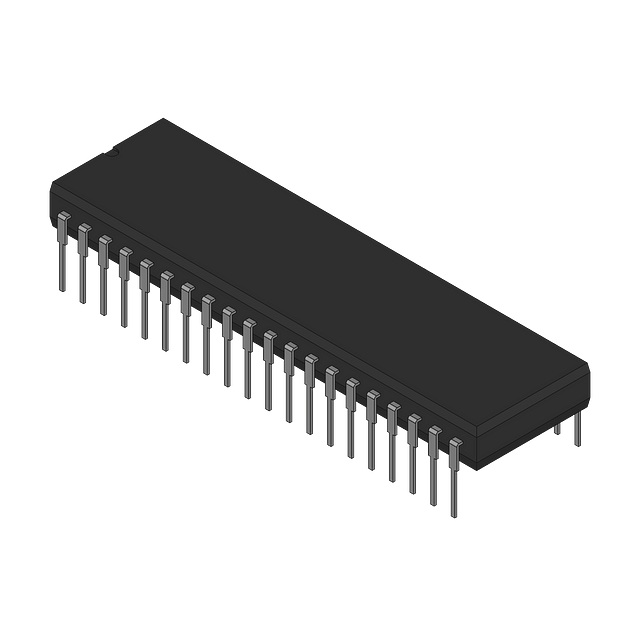

Product Images
