Microchip
AT89C5115-RATUM
16KB FLASH 8051 Microcontroller, 40MHz, UART, 3 Timers, Surface Mount, VQFP-32
The AT89C5115-RATUM is a 16KB FLASH 8051 microcontroller with a core architecture frequency of 40MHz. It features a UART interface and 3 timers/counters. The device operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 3V and 5.5V. The microcontroller is packaged in a VQFP-32 and is lead-free and RoHS compliant.
Frequency40MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT89C5115-RATUM technical specifications.
General
| Access Time | 40us |
| Core Architecture | 8051 |
| Frequency | 40MHz |
| Interface | UART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Timers/Counters | 3 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT89C5115-RATUM Datasheet
Download the complete datasheet for Microchip AT89C5115-RATUM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

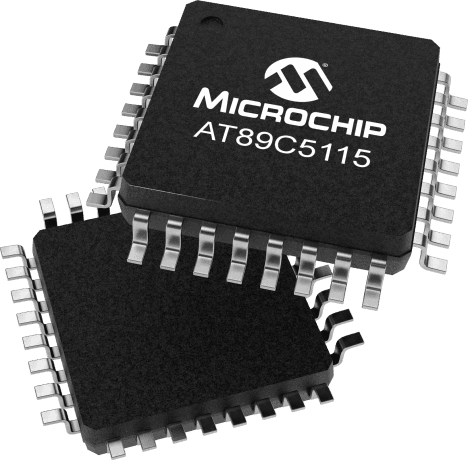

Product Images
