8-bit microcontroller (MCU) featuring 16KB FLASH memory and 512B RAM. Operates at up to 40MHz with an 8051 core architecture. Includes UART/USART interface, 3 timers/counters, and peripherals like POR, PWM, and WDT. Designed for surface mount with a 28-pin PLCC package and tin/matte contact plating. Supports a supply voltage range of 3V to 5.5V and operates from -40°C to 85°C.
Frequency40MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT89C5115-SISUM technical specifications.
General
Access Time
40us
Package/Case
PLCC
Contact Plating
Tin, Matte
Core Architecture
8051
Data Bus Width
8b
Frequency
40MHz
Interface
UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
888
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
89C
Compliance
RoHS
Compliant
Datasheet
Microchip AT89C5115-SISUM Datasheet
Download the complete datasheet for Microchip AT89C5115-SISUM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

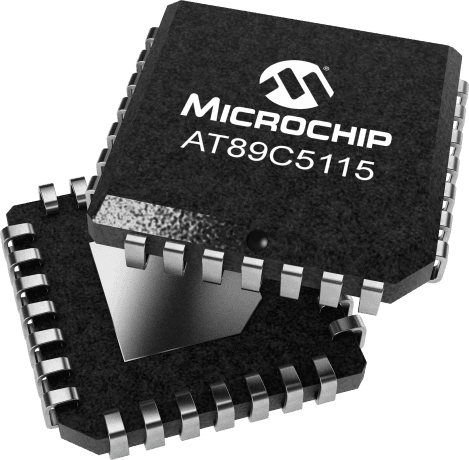

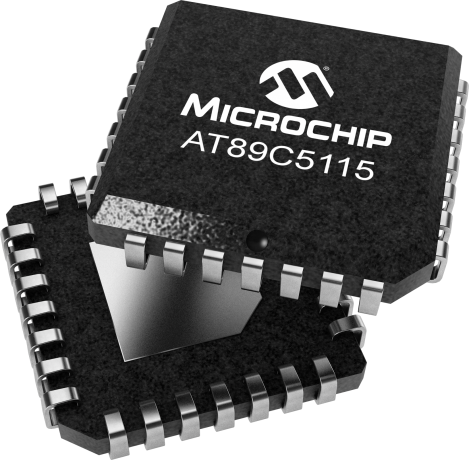

Product Images
