8-bit microcontroller (MCU) featuring 64KB Flash memory and 2KB RAM. Operates at a 60MHz frequency with a 40µs access time. Offers 36 I/Os and integrated PWM peripheral. Supports a wide operating voltage range of 3V to 5.5V and operates between -40°C and 85°C. RoHS compliant and lead-free.
Frequency60MHz
Quick Jump:
Technical Specifications
Microchip AT89C51CC03UA-RDTUM technical specifications.
General
| Access Time | 40us |
| Frequency | 60MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of I/Os | 36 |
| Peripherals | PWM |
| RAM Size | 2KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT89C51CC03UA-RDTUM Datasheet
Download the complete datasheet for Microchip AT89C51CC03UA-RDTUM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

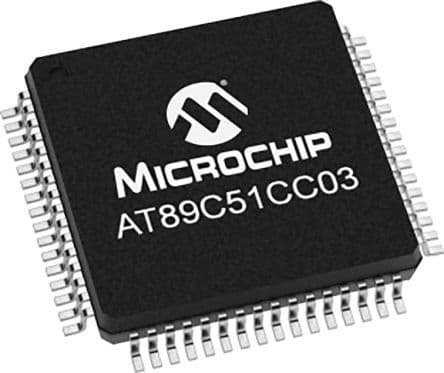

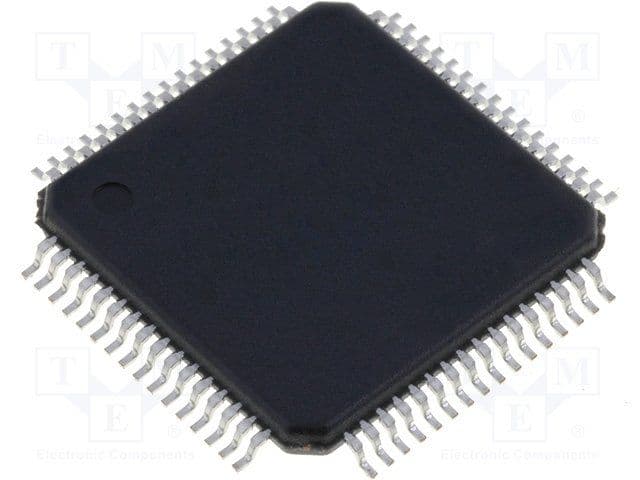

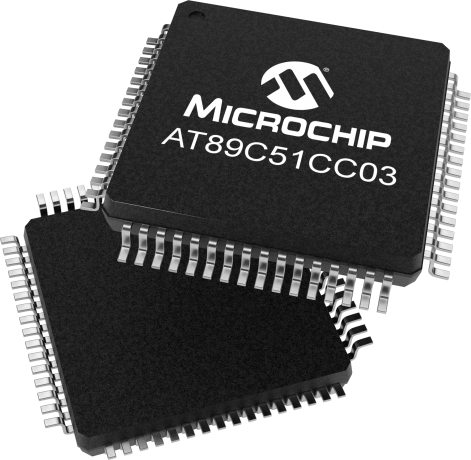

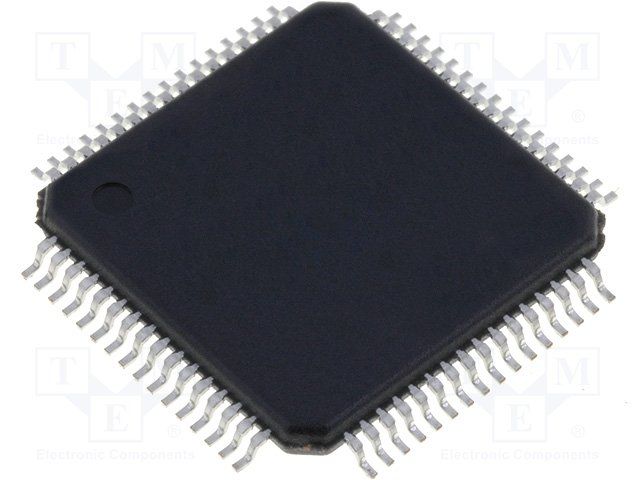

Product Images
