Frequency60MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip AT89C51RB2-3CSUL technical specifications.
General
| Package/Case | PDIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 60MHz |
| Interface | SPI, UART, USART |
| Max Frequency | 60MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Package Quantity | 216 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT |
| RAM Size | 1280B |
| Series | 89C |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT89C51RB2-3CSUL Datasheet
Download the complete datasheet for Microchip AT89C51RB2-3CSUL to view detailed technical specifications.
No datasheet is available for this part.

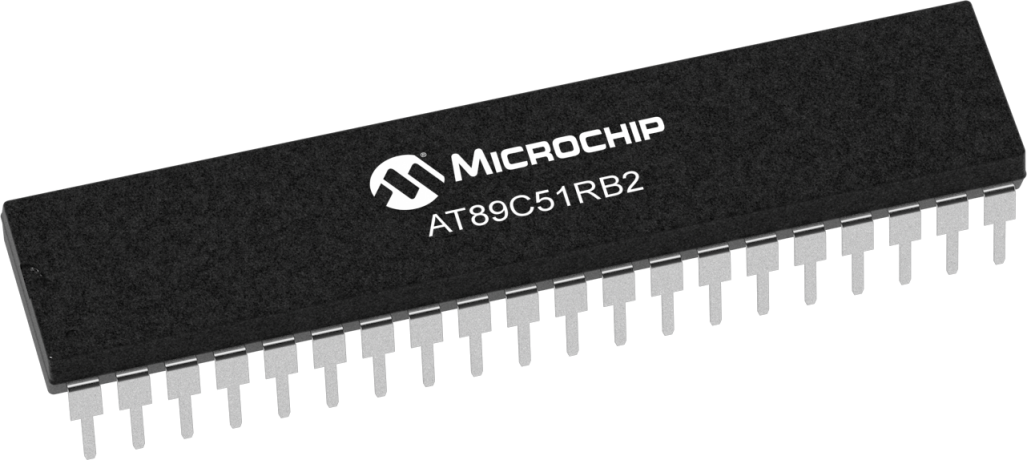

Product Images
