8-bit microcontroller featuring 32KB FLASH memory and 512B RAM. Operates at up to 24MHz with an 8-bit data bus width. Includes UART interface and 3 timers/counters, with an integrated watchdog timer. Packaged in a 44-pin PLCC for surface mounting, this lead-free component supports a supply voltage range of 4V to 5.5V and operates from -40°C to 85°C.
Frequency24MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip AT89C51RC-24JU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip AT89C51RC-24JU technical specifications.
General
| Access Time | 24us |
| Package/Case | PLCC |
| Core Architecture | 80C51 |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Height | 4.06mm |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of I/Os | 32 |
| Number of Timers/Counters | 3 |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT89C51RC-24JU Datasheet
Download the complete datasheet for Microchip AT89C51RC-24JU to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

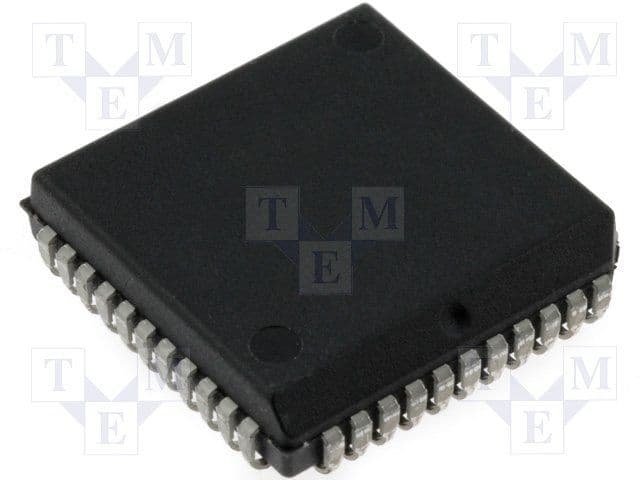

Product Images
