The AT89S52-24JI is an 8051 microcontroller with 8KB of FLASH memory and an 8-bit data bus. It operates at a maximum frequency of 33MHz and has a maximum supply voltage of 5.5V. The device is packaged in a PLCC and is designed for surface mount applications. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Frequency33MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip AT89S52-24JI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip AT89S52-24JI technical specifications.
General
| Access Time | 24us |
| Package/Case | PLCC |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Interface | UART, USART |
| Lead Free | Contains Lead |
| Max Frequency | 33MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Oscillator Type | Internal |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| RAM Size | 256B |
| RoHS Compliant | No |
| Series | 89S |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip AT89S52-24JI Datasheet
Download the complete datasheet for Microchip AT89S52-24JI to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

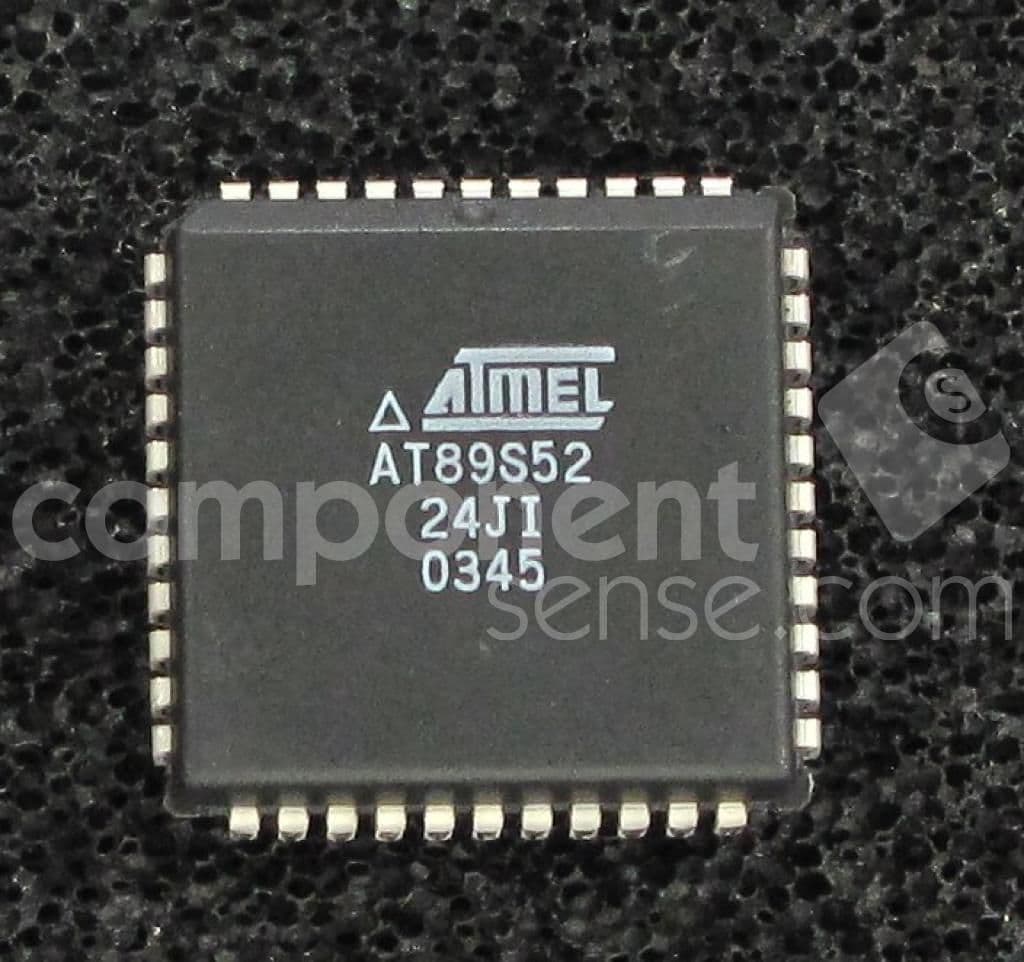

Product Images
