32-bit ARM microcontroller featuring a 180MHz core frequency and 128KB ROM memory. This surface mount device offers 16KB RAM and a comprehensive interface suite including I2C, SPI, USB, Ethernet, UART, USART, EBI/EMI, I2S, and 2-Wire. With 122 I/Os, 6 timers/counters, and internal oscillator, it operates from 1.65V to 1.95V, with an operating temperature range of -40°C to 85°C.
Frequency180MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT91RM9200-CJ-002 technical specifications.
General
| Access Time | 180us |
| Package/Case | BGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 180MHz |
| Height | 0.89mm |
| Interface | I2C, SPI, USB, Ethernet, UART, USART, EBI/EMI, I2S, 2-Wire |
| Lead Free | Lead Free |
| Length | 15mm |
| Max Frequency | 180MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.95V |
| Memory Size | 128KB |
| Memory Type | ROM, |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of I/Os | 122 |
| Number of Programmable I/O | 122 |
| Number of Timers/Counters | 6 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | POR |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AT91 |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT91RM9200-CJ-002 Datasheet
Download the complete datasheet for Microchip AT91RM9200-CJ-002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

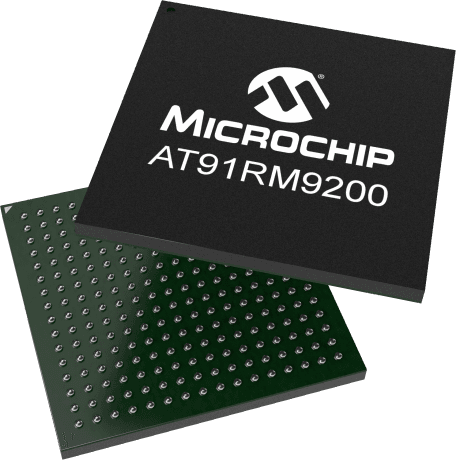

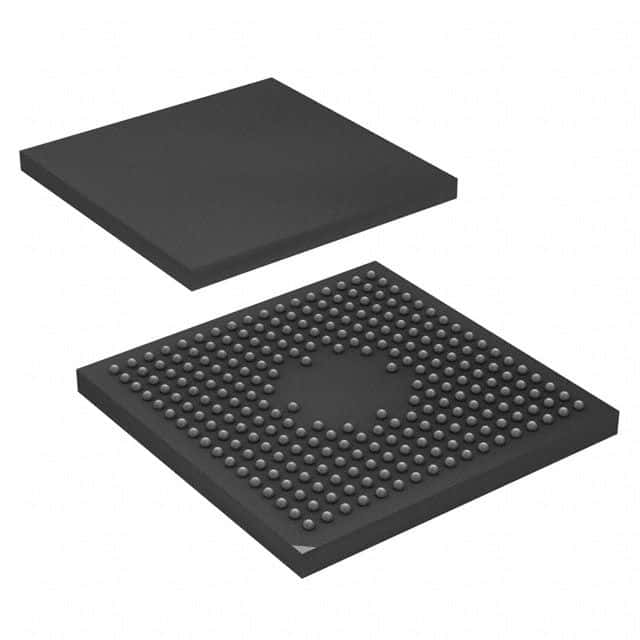

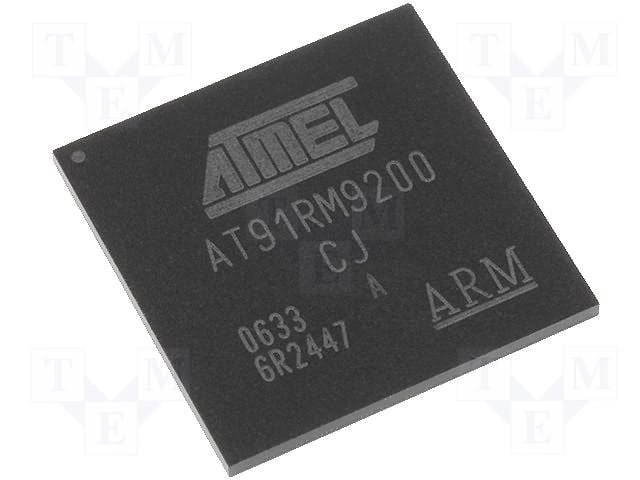

Product Images
