32-bit ARM microcontroller featuring a 240MHz core, 64KB RAM, and 32KB ROM. This surface mount device offers extensive connectivity with I2C (2 channels), SPI (1 channel), USB, UART, USART, EBI/EMI, and 2-Wire interfaces. Includes 6 ADC channels, 4 PWM channels, 4 timers/counters, and a watchdog timer. Operates from 1.65V to 3.6V supply, with a temperature range of -40°C to 85°C.
Frequency240MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT91SAM9RL64-CU technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 240MHz |
| Height | 0.9mm |
| Interface | I2C, SPI, USB, UART, USART, EBI/EMI, 2-Wire |
| Lead Free | Lead Free |
| Length | 15.05mm |
| Max Frequency | 240MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | ROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of ADC Channels | 6 |
| Number of I/Os | 118 |
| Number of I2C Channels | 2 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SAM9R |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 15.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT91SAM9RL64-CU Datasheet
Download the complete datasheet for Microchip AT91SAM9RL64-CU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

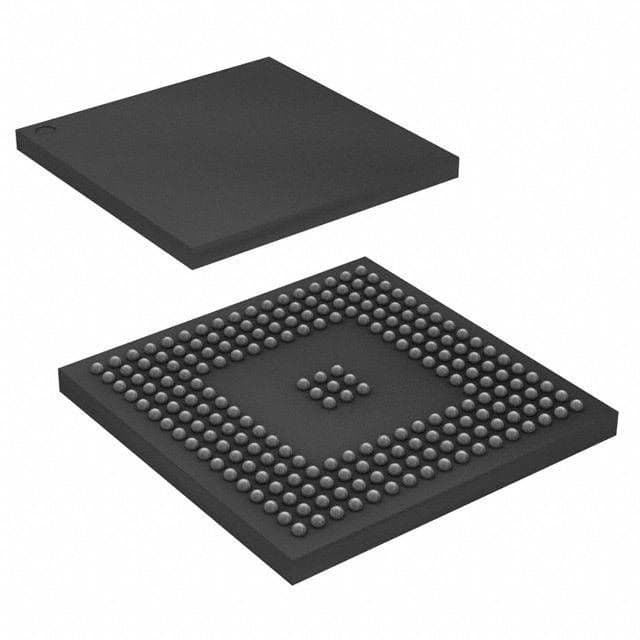

Product Images
