Technical Specifications
Microchip AT93C56B-SSHM-T technical specifications.
General
| Package/Case | SOIC |
| Density | 2Kb |
| Height | 1.5mm |
| Interface | Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 5.05mm |
| Max Frequency | 2MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.5V |
| Width | 3.99mm |
| Write Cycle Time-Max (tWC) | 5ms |
Compliance
| RoHS | Compliant |
Datasheet
Microchip AT93C56B-SSHM-T Datasheet
Download the complete datasheet for Microchip AT93C56B-SSHM-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

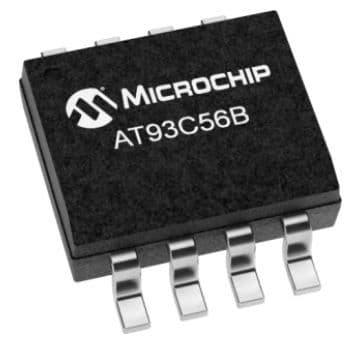

Product Images
