Microchip
ATF1508ASVL-20JU84
CPLD - Complex Programmable Logic Devices CPLD 128 MACROCELL 3.3V 20NS IND TEMP
Frequency83.3MHz
PackageJ
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF1508ASVL-20JU84 technical specifications.
General
Package/Case
J
Lead Free
Lead Free
Max Frequency
83.3MHz
Max Operating Temperature
85°C
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Gates
3000
Number of I/Os
64
Number of Logic Blocks (LABs)
8
Number of Macro Cells
128
Number of Macrocells
128
Number of Programmable I/O
64
Operating Supply Voltage
3.3V
Package Quantity
15
Packaging
Rail/Tube
Propagation Delay
20ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
ATF15xx
Speed Grade
20
Compliance
RoHS
Compliant
Datasheet
Microchip ATF1508ASVL-20JU84 Datasheet
Download the complete datasheet for Microchip ATF1508ASVL-20JU84 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

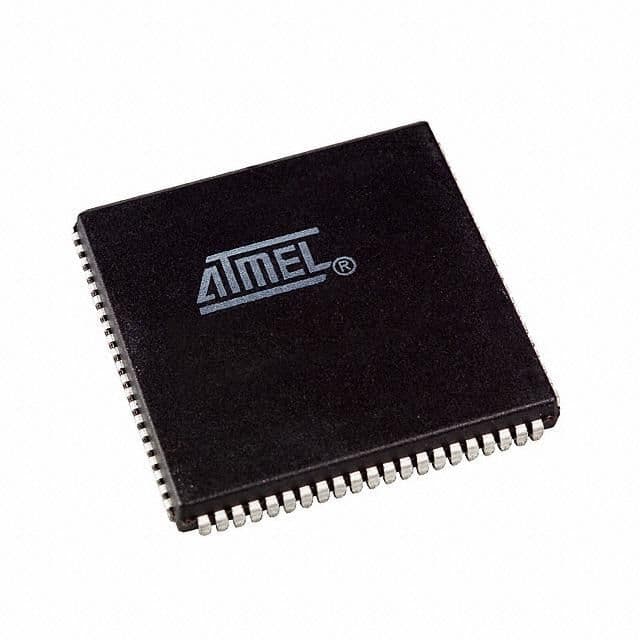

Product Images
