Frequency83MHz
PackagePLCC
Current55mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF16V8B-10JU technical specifications.
General
Access Time
20ns
Package/Case
PLCC
Frequency
83MHz
Lead Free
Lead Free
Max Frequency
83MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
95mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
8
Number of Macrocells
8
Operating Supply Voltage
5V
Packaging
Rail/Tube
Propagation Delay
10ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
16V8
Supply Current
55mA
Turn-On Delay Time
10ns
Compliance
RoHS
Compliant
Datasheet
Microchip ATF16V8B-10JU Datasheet
Download the complete datasheet for Microchip ATF16V8B-10JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

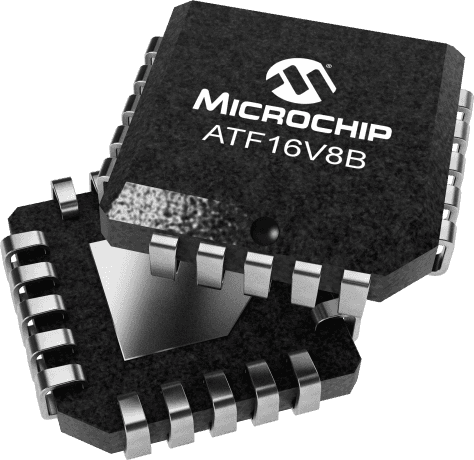

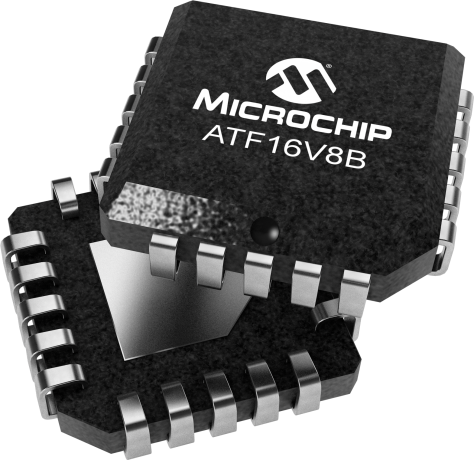

Product Images
