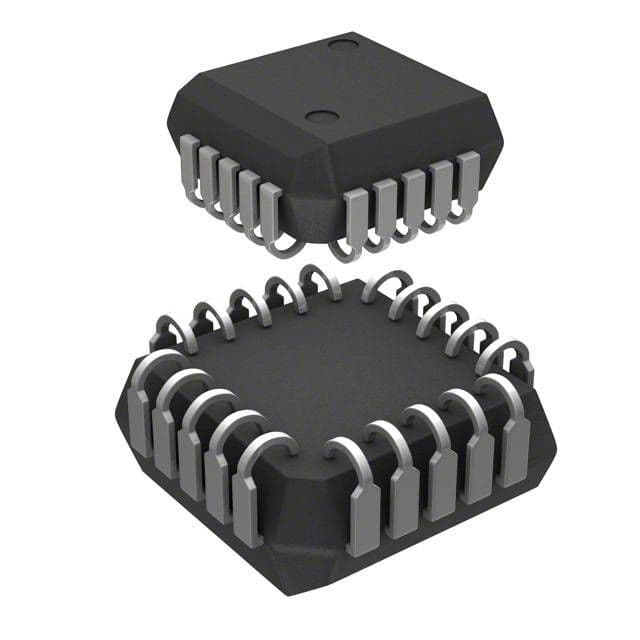

The ATF16V8B-15JC is a 8-macrocell, 8-I/O FPGA from Microchip with an access time of 15ns and a maximum frequency of 50MHz. It operates within a temperature range of 0°C to 70°C and is supplied with a voltage of 5V. The device is packaged in a J-lead surface mount package and is available in quantities of 48. It has an operating supply current of 55mA and a propagation delay of 15ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF16V8B-15JC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 15ns |
| Package/Case | J |
| Lead Free | Contains Lead |
| Max Frequency | 50MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Number of Macrocells | 8 |
| Operating Supply Current | 55mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | 16V8 |
| Turn-On Delay Time | 15ns |
| Weight | 0.025468oz |
| RoHS | Not CompliantNo |
