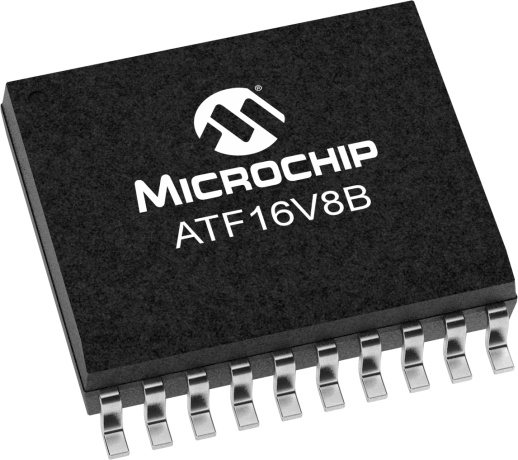

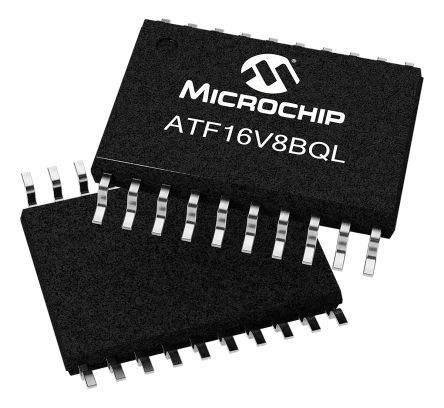

This Simple Programmable Logic Device (SPLD) offers 250 gates and 8 macro cells, operating at a maximum frequency of 62MHz. Featuring a 15ns access time and 15ns propagation delay, it supports a 5V operating supply voltage with a range of 4.5V to 5.5V. The device is surface mountable in a 20-pin SOIC package, measuring 12.8mm in length, 7.5mm in width, and 2.05mm in height. It operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF16V8B-15SU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 15ns |
| Package/Case | SOIC |
| Frequency | 62MHz |
| Height | 2.05mm |
| Lead Free | Lead Free |
| Length | 12.8mm |
| Max Frequency | 62MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 80mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Gates | 250 |
| Number of I/Os | 8 |
| Number of Macro Cells | 8 |
| Number of Macrocells | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 16V8 |
| Supply Current | 55mA |
| Turn-On Delay Time | 15ns |
| Width | 7.5mm |
| RoHS | Compliant |
