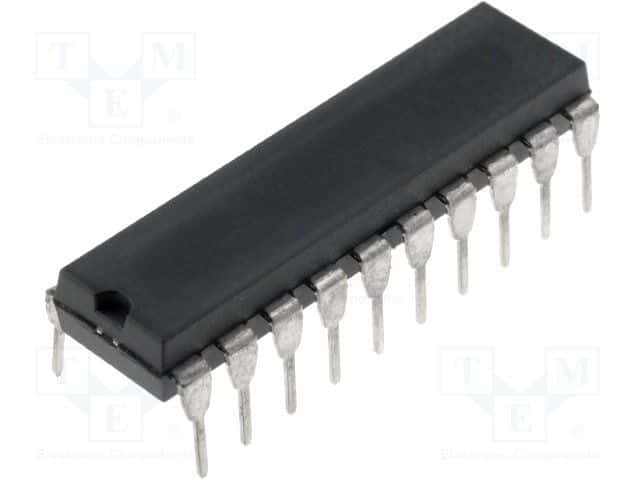

Simple Programmable Logic Device (SPLD) featuring 8 macro cells and 250 gates, operating at a maximum frequency of 62MHz. This through-hole mount component offers an 8-input, 8-output configuration with a 15ns access time and propagation delay. It operates on a 5V supply voltage, with a maximum supply current of 80mA, and is RoHS compliant. The device is housed in a 20-pin PDIP package, suitable for a wide operating temperature range from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATF16V8BQL-15PU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip ATF16V8BQL-15PU technical specifications.
| Access Time | 15ns |
| Package/Case | PDIP |
| Frequency | 62MHz |
| Height | 4.953mm |
| Lead Free | Lead Free |
| Length | 26.92mm |
| Max Frequency | 62MHz |
| Max Operating Temperature | 85°C |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Current | 80mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Gates | 250 |
| Number of I/Os | 8 |
| Number of Inputs | 8 |
| Number of Macro Cells | 8 |
| Number of Macrocells | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 16V8 |
| Speed Grade | 15 |
| Supply Current | 20mA |
| Turn-On Delay Time | 15ns |
| Voltage | 5V |
| Width | 7.112mm |
| RoHS | Compliant |
