This 5V, 20-pin SOIC Simple Programmable Logic Device (SPLD) offers 8 macro cells and 250 gates, operating at a frequency of 62MHz with a 15ns access time. Featuring FLASH memory technology, it supports surface mounting and operates within an industrial temperature range of -40°C to 85°C. The device is RoHS compliant and designed for a supply voltage range of 4.5V to 5.5V.
Frequency62MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF16V8BQL-15SU technical specifications.
General
Access Time
15ns
Package/Case
SOIC
Frequency
62MHz
Height
2.05mm
Lead Free
Lead Free
Length
12.8mm
Max Operating Temperature
85°C
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Current
80mA
Max Supply Voltage
5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Gates
250
Number of I/Os
8
Number of Macro Cells
8
Number of Macrocells
8
Packaging
Rail/Tube
Propagation Delay
15ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
16V8
Supply Voltage-Nom
5.5V
Temperature Grade
INDUSTRIAL
Turn-On Delay Time
15ns
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATF16V8BQL-15SU Datasheet
Download the complete datasheet for Microchip ATF16V8BQL-15SU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

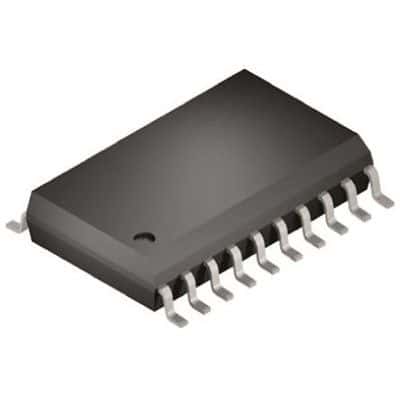

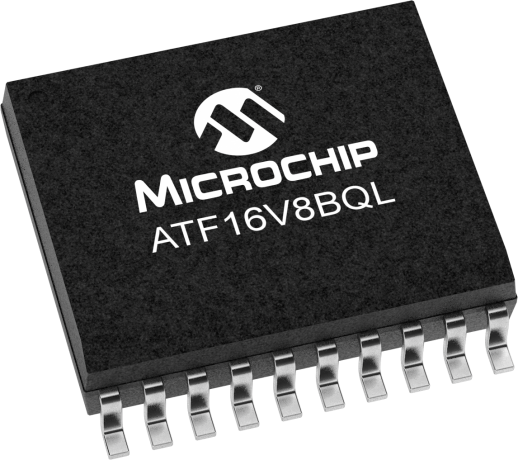

Product Images
