Frequency125MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF16V8C-7JU technical specifications.
General
Access Time
7ns
Package/Case
PLCC
Frequency
125MHz
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
130mA
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Gates
150
Number of I/Os
8
Number of Macro Cells
8
Number of Macrocells
8
Packaging
Rail/Tube
Propagation Delay
7.5ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
16V8
Compliance
RoHS
Compliant
Datasheet
Microchip ATF16V8C-7JU Datasheet
Download the complete datasheet for Microchip ATF16V8C-7JU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

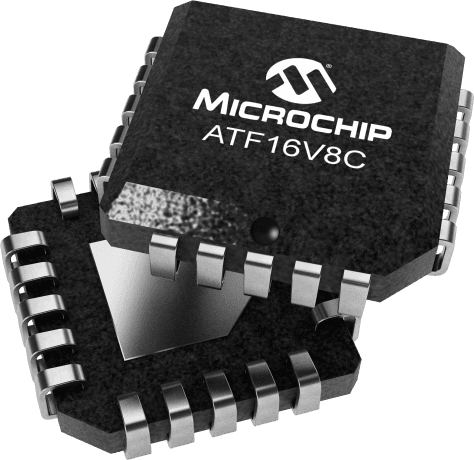

Product Images
